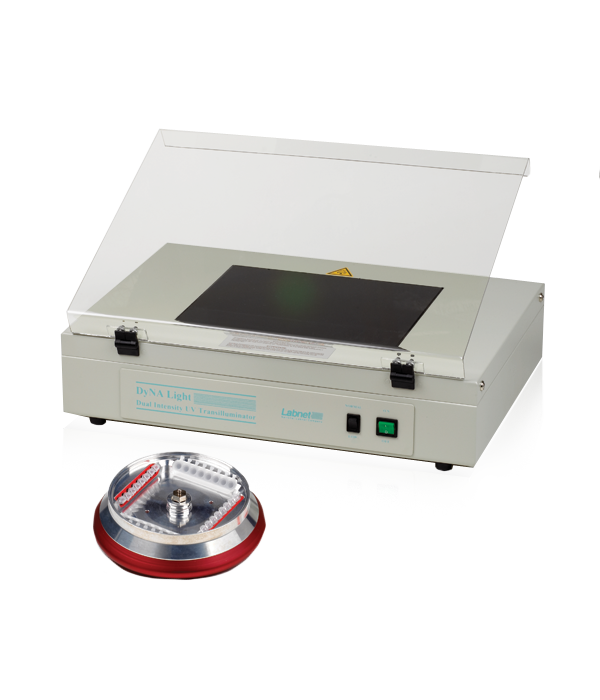

DyNA Light™ UV Transilluminator
With its dual intensity light source, the DyNA Light UV Transilluminator is suitable for both analytical and preparative work. The large viewing surface accommodates all popular gel sizes.
- Large viewing surface - 21 x 26cm
- Dual intensity for analytical and preparatory work
- 302 nm midrange wavelength
- Hinged cover protects users from UV light
The intensity of the DyNA Light's 302 nm UV light source can be adjusted to two levels, normal and low, at the touch of a button. The low setting provides a 20% reduction in intensity to minimize damage to nucleic acids during longer exposures. Full intensity produces clear and bright illumination for documentation work.
Users are protected by a hinged, transparent shield of UV blocking acrylic that covers the top surface of the transilluminator. The cover can be raised to the proper angle for viewing samples and lowered when not in use to protect the viewing surface from dust and scratches. A built-in filter guard reduces solarization and protects the UV filter, extending its service life up to 5000 hours.
| Product Specifications | |
|---|---|
| Output voltage/current | 10V to 150V/10 - 400 mA |
| Timer | 0 - 99 hr or continuous, audible alert |
| Overall Dimensions (W x D x H) | 10 x 6.7 x 2.5 in./24.5 x 17 x 6.2 cm |
| Gel Capacity | 1 large (12.5 x 12 cm), 2 small (12.5 x 6 cm), 4 micro (6 x 6 cm) |
| Program memory | Last programmed parameters saved |
| Electrical | Universal 100V- 240V, 50/60 Hz |
