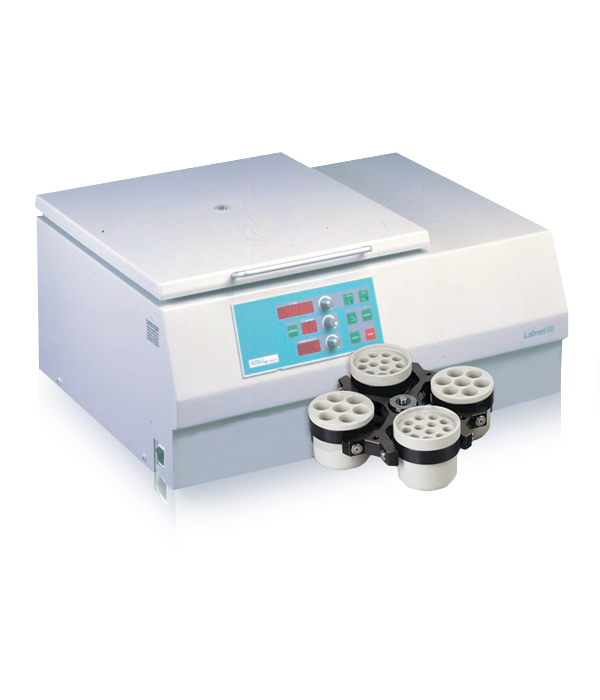

Z400 & Z400K High Capacity Centrifuge
Multiple swing-out and angle rotor options make the Z400 series centrifuges useful for a wide range of applications from molecular and cellular biology to microplate technology and blood separations.
- Maximum speed 13,500rpm/17,310 x g
- Automatic soft stop braking
- Microprocessor control with g-force conversion program
- Multiple swing out and angle rotor options
The microprocessor based controls are designed for quick and easy programming. Parameters are set with knobs while their values are shown on large digital displays. To prevent accidental change, the knobs are inactivated during a run unless the preset key is depressed.
The Z400 features maintenance-free, induction drives for exceptionally quiet and smooth operation. Safety features include an electronic lid lock, imbalance sensors and a rotor recognition program that automatically limits each rotor to its maximum rated speed. G-force conversion software allows for setting and display of speed in rpm or RCF. Acceleration and deceleration rates can be set at fast or slow.
A continuous flow of ambient air through the rotor chamber of the Z400 prevents sample temperature from rising significantly above ambient, even during extended runs.
| Product Specifications | Z 400 |
|---|---|
| Speed Range | 250rpm to 13,500rpm |
| Maximum RCF | 17,310 x g |
| Maximum capacity | 4 x 500ml |
| Timer | 1 to 60 minutes or continuous "Quick" button for momentary operation |
| ROTOR | Centrifugal Radius | Size | Speed | SKU # |
|---|---|---|---|---|
| 4 x 500 ml Swing-out Rotor | 18.6 cm | 4 x 500 ml | 3,500 rpm/2,547 x g | C0383-75 |
| 12 x 50 ml Conical Swing-out Rotor | 18.4 cm | 12 x 50 ml | 3,500 rpm/2,520 x g | C0400-50 |
| 20 x 15 ml Conical Swing-out Rotor | 18.7 cm | 20 x 15 ml | 3,500 rpm/2,561 x g | C0400-15 |
| 2 x 3 Microplates Swing-out Rotor | 12.2 cm | 2 x 3 | 4,500 rpm/2,762 x g | C0300-16 |
| 12 x 15 ml Conical Angle Rotor | 10.7 cm | 12 x 15 ml | 6,000 rpm/4,185 x g | C0300-96 |
| 6 x 50 ml Conical Angle Rotor | 9.6 cm | 6 x 50 ml | 6,000 rpm/3,863 x g | C0300-97 |
| 24 x 15 ml Angle Rotor | 14.4 cm | 24 x 15 ml | 3,500 rpm/1,972 x g | C0323-81 |
| 24 x 1.5/2.0 ml High Speed Angle Rotor | 8.3 cm | 24 x 1.5/2.0 ml | 13,500 rpm/17,310 x g | C0252-87 |
| 24 x 1.5/2.0 ml, 24 x 0.5 ml Combination Angle Rotor | 8.4 cm | 24 x 1.5/2.0 ml, 24 x 0.5 ml | 13,500 rpm/17,110 x g | C0252-55 |
| 44 x 1.5/2.0 ml Angle Rotor | 8.4 cm | 44 x 1.5/2.0 ml | 13,500 rpm/17,110 x g | C0252-9 |
